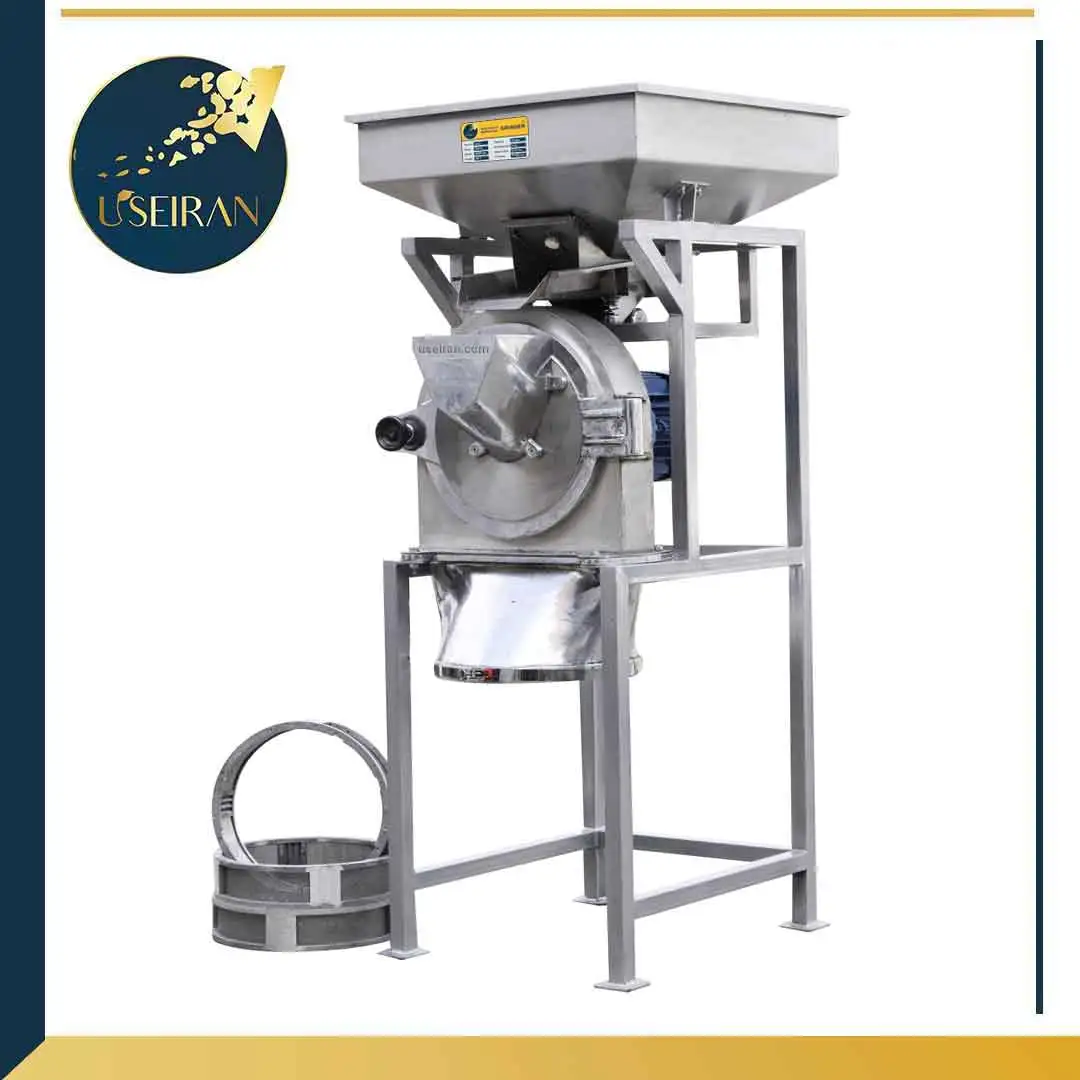

Hammer Cutter Grinding Mill Machine, Industrial Air-Cooled, 3ph

Description

Hammer Cutter Grinding Mill Machine for Food, Spice, and Pharmaceutical Grinding

The Hammer Cutter Grinding Mill Machine is a versatile solution for grinding a wide range of materials. With its powerful design, this industrial grinder efficiently processes tough food ingredients and oily spices, including wet or moist substances. Its air-cooled mechanism makes it ideal for continuous use without overheating, while offering precise control over the final powder granularity by adjusting the mesh size.

High-Efficiency Industrial Grinder for Fatty and Dry Materials | Air-Cooled Hammer Mill

This multifunction grinding mill features a hammer-cutter mechanism that can process both oily and dry materials with ease. From food powders like quatu (qaoot) and flaxseed to dry spices, coriander seeds, cumin, coffee, nutmeg, black cumin, date pits, senjed, and many others, this cutter grinder delivers high performance in both food and pharmaceutical applications.

Multifunction Cutter Grinder for Industrial Use – Ideal for Food and Spice Grinding

With a 10-15 HP three-phase motor, the machine is designed to grind fatty materials and alloy powders without overheating or releasing oils, ensuring a fine and high-quality powder output in the shortest time possible. Moreover, this hammer mill performs its grinding tasks without creating dust, offering a cleaner workspace.

Pulverizer and Industrial Mill for Food, Spice, and Pharmaceutical Applications

The grinder is equipped with four interchangeable mesh screens, allowing you to achieve your desired powder fineness with ease.
Trusted by Leading Food and Pharmaceutical Brands

Top food and pharmaceutical producers such as MazMaz Foods, Golestan Tea, Gorji Biscuits, and Iran Gelatin Capsule use our Hammer Cutter Grinding Mill Machine for its superior functionality and product quality.
Air-Cooled Industrial Grinder for Precise and Dust-Free Grinding

Materials are fed into a 50-liter hopper located at the top of the mill. The input quantity is controlled via a vibratory feeder and an adjustable inlet.

Once inside, the materials are shredded by the cutting blades and side gears. After reaching the desired size, they are ejected through the mesh by the specially designed fan blades. These blades also cool the output, ensuring that oily materials are processed without releasing their oils, thanks to the air-cooled design.

Special Features of the Hammer Cutter Grinding Mill Machine

High-Speed Grinding: With a 3,000 RPM motor, it grinds materials rapidly.
Efficient Cooling: Designed with fan-like blades, it cools the materials during the grinding process to prevent oil release.
Multiple Applications: Ideal for food production, spice shops, and pharmaceutical factories.
Versatile Mesh Options: Includes four specialized mesh screens for adjustable powder granularity.
Dust-Free Operation: Minimizes dust output during the grinding process.

Specifications

Motor Power: 10-15 HP (7.5-12 kW)
Motor Speed: 3,000 RPM
Machine Weight: 200kg
Hopper Capacity: 20-30 kg
Material: Stainless steel and iron (customizable)
Mesh Screens: Four mesh sizes included
Power Supply: Three-phase

Advantages

High-speed grinding with cutting action: Its unique cutting and hammer action efficiently reduces materials to powder.
Cooling mechanism: The cooling feature ensures fatty substances are ground without heating or releasing oils.
Customizable designs: Choose between different alloy materials and motor power capacities, starting from $2,800 and reaching $4,200 based on customization.

Buy Hammer Cutter Grinding Mill | Efficient Industrial Grinder from Useiran

You can contact Useiran for further details and to purchase this industrial grinder with fully customizable features.
